Editings

from casys.report import ReportAltiData

from casys.editing import Clip, ClipCondition, EditingComponent, StatisticsByPass
from casys.readers import CLSTableReader

from casys import CasysPlot, DataParams, DateHandler, Field, NadirData, PlotParams

NadirData.enable_loginfo()

# Reader definition
table_name = "TABLE_C_J3_B_GDRD"
orf_name = "C_J3_GDRD"
cycle_number = 122
start = DateHandler.from_orf(orf_name, cycle_number, 1, pos="first")
end = DateHandler.from_orf(orf_name, cycle_number, 154, pos="last")

reader = CLSTableReader(
    name=table_name,
    date_start=start,
    date_end=end,
    orf=orf_name,
    time="time",
    longitude="LONGITUDE",
    latitude="LATITUDE",
)

# Data container definition
ad = NadirData(source=reader)

var_wind = Field(
    name="wind", source="IIF(FLAG_VAL.ALTI==0, WIND_SPEED.ALTI, DV)", unit="m/s"
)

Define the invalidity conditions

e0 = EditingComponent(
    name="Invalid values",
    invalidity_conditions=[
        ClipCondition(name="Wind speed is NaN", clip=Clip("EQ_DV(WIND_SPEED.ALTI)"))
    ],
    value=1,
)

e1 = EditingComponent(
    name="Quality_indicator",
    invalidity_conditions=[
        ClipCondition(
            name="Sea ice",
            clip=Clip("IIF(FLAG_ICE.ALTI, IIF(FLAG_SURFACE_TYPE :< 2, 1, 0), 0) :!= 0"),
        ),
        ClipCondition(
            name="Land and enclosed seas except caspian",
            clip=Clip(
                "IIF(FLAG_SURFACE_TYPE :== 0 || (FLAG_SURFACE_TYPE :== 1 && OCEANIC_BASIN_NUMBER :== 22), 0, 1) :!= 0"
            ),
        ),
    ],
    value=2,
)

e2 = EditingComponent(
    name="Wind > 5",
    invalidity_conditions=[
        ClipCondition(name="Wind speed out of range", clip=Clip("WIND_SPEED.ALTI :> 5"))
    ],
    value=3,
)

e3_clip = (
    "IIF(BATHYMETRY.MODEL :< -1000 && DISTANCE_SHORELINE.MODEL.ABSOLUTE :> 100000 && OCEANIC_VARIABILITY :< 0.3,"
    "SEA_SURFACE_HEIGHT.ALTI.INTERP - SEA_STATE_BIAS.ALTI.NON_PARAMETRIC - SOLID_EARTH_TIDE_HEIGHT.MODEL.CARTWRIGHT_TAYLER_71"
    "- POLE_TIDE_HEIGHT.MODEL.WAHR_85 - DYNAMICAL_ATMOSPHERIC_CORRECTION.MODEL.MOG2D_HR - DRY_TROPOSPHERIC_CORRECTION.MODEL.ECMWF_GAUSS"
    "- OCEAN_TIDE_HEIGHT.MODEL.GOT4V8 - WET_TROPOSPHERIC_CORRECTION.RAD - IONOSPHERIC_CORRECTION.ALTI - MEAN_SEA_SURFACE.MODEL.CNESCLS11"
    "- SEA_LEVEL_ANOMALY_BIAS.ALTI, DV)"
)

# Invalidate passes where mean or std statistics exceed the thresholds.
e3 = EditingComponent(
    name="Per pass statistics",
    invalidity_conditions=[
        StatisticsByPass(
            name="e3_1",
            clip=Clip(e3_clip),
            nbr_min_pts=3,
            threshold={"mean": 0.3, "std": 0.4},
            orf=ad.orf,
        ),
        StatisticsByPass(
            name="e3_2",
            clip=Clip(e3_clip),
            nbr_min_pts=200,
            threshold={"mean": 0.15, "std": 0.2},
            orf=ad.orf,
        ),
    ],
    value=4,
)

Using the add_editing method:

var_edt = Field(name="EDITING.CUSTOM", description="My personal editing")

ad.add_editing(name="My editing", field=var_edt, components=[e0, e1, e2, e3])

ad.add_raw_data(name="Wind speed", field=var_wind)

ad.compute()

2025-05-14 10:56:23 INFO    Reading ['LONGITUDE', 'LATITUDE', 'wind', 'time', 'DYNAMICAL_ATMOSPHERIC_CORRECTION.MODEL.MOG2D_HR', 'FLAG_ICE.ALTI', 'SOLID_EARTH_TIDE_HEIGHT.MODEL.CARTWRIGHT_TAYLER_71', 'BATHYMETRY.MODEL', 'POLE_TIDE_HEIGHT.MODEL.WAHR_85', 'OCEANIC_BASIN_NUMBER', 'SEA_SURFACE_HEIGHT.ALTI.INTERP', 'OCEANIC_VARIABILITY', 'OCEAN_TIDE_HEIGHT.MODEL.GOT4V8', 'SEA_STATE_BIAS.ALTI.NON_PARAMETRIC', 'DRY_TROPOSPHERIC_CORRECTION.MODEL.ECMWF_GAUSS', 'WET_TROPOSPHERIC_CORRECTION.RAD', 'SEA_LEVEL_ANOMALY_BIAS.ALTI', 'FLAG_SURFACE_TYPE', 'IONOSPHERIC_CORRECTION.ALTI', 'WIND_SPEED.ALTI', 'DISTANCE_SHORELINE.MODEL.ABSOLUTE', 'MEAN_SEA_SURFACE.MODEL.CNESCLS11']
2025-05-14 10:56:31 INFO    Computing My editing
2025-05-14 10:56:32 INFO    Computing done.

Plot

Editings can be visualized in 3 different ways:

• A graphical plot along time using no additional parameter (or plot="time")

• A map plot using the plot="map" parameter

• A graphical view showing which points were invalidated by which condition using the plot="editing" parameter

Each component can be visualized separately using the group parameter.

• group="all": shows all group

• group="valid": shows valid, unedited values

• group="component name": shows only the data flagged by the provided component name

• group=["name1", "name2"]: shows data flagged by the provided components name.

Editings map

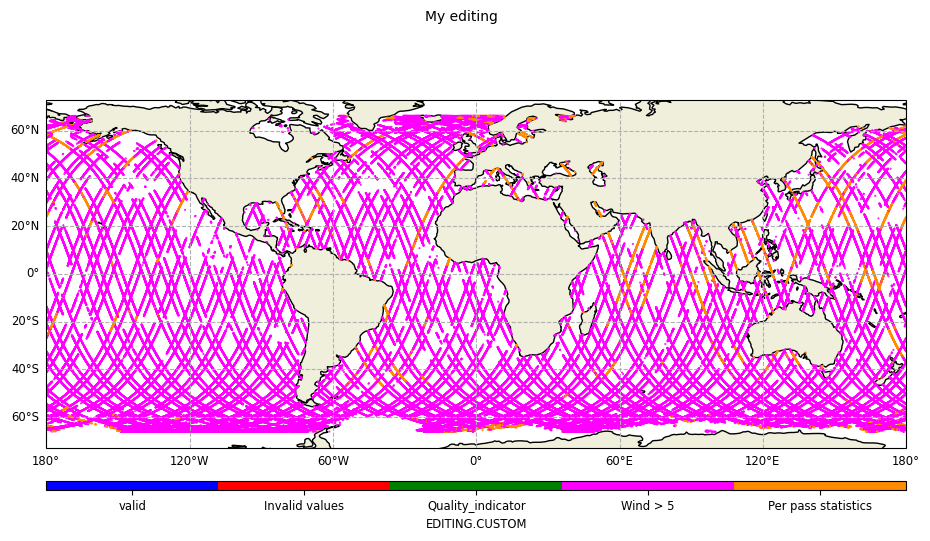

cp = CasysPlot(
    data=ad,
    data_name="My editing",
    plot="map",
    group=["Per pass statistics", "Wind > 5"],
)

cp.show()

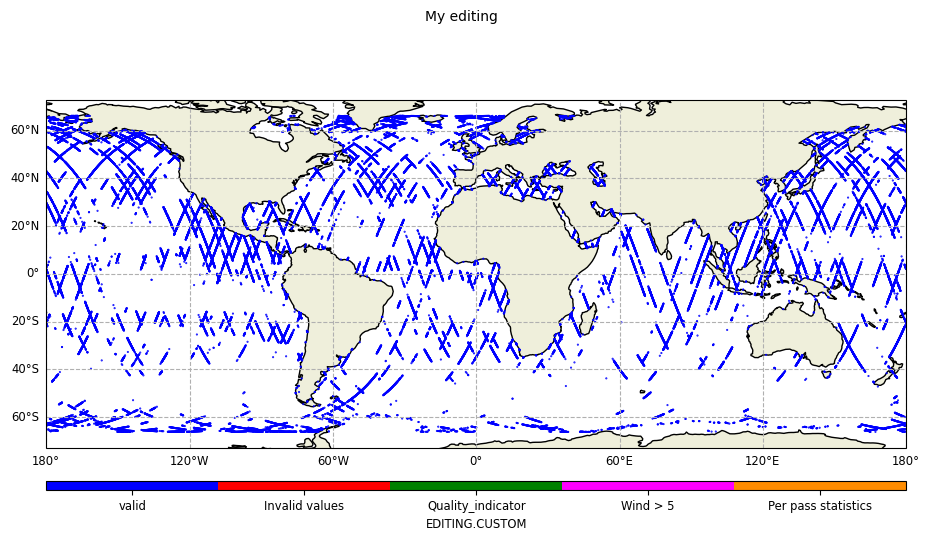

cp = CasysPlot(data=ad, data_name="My editing", plot="map", group="valid")

cp.show()

Editings graphic

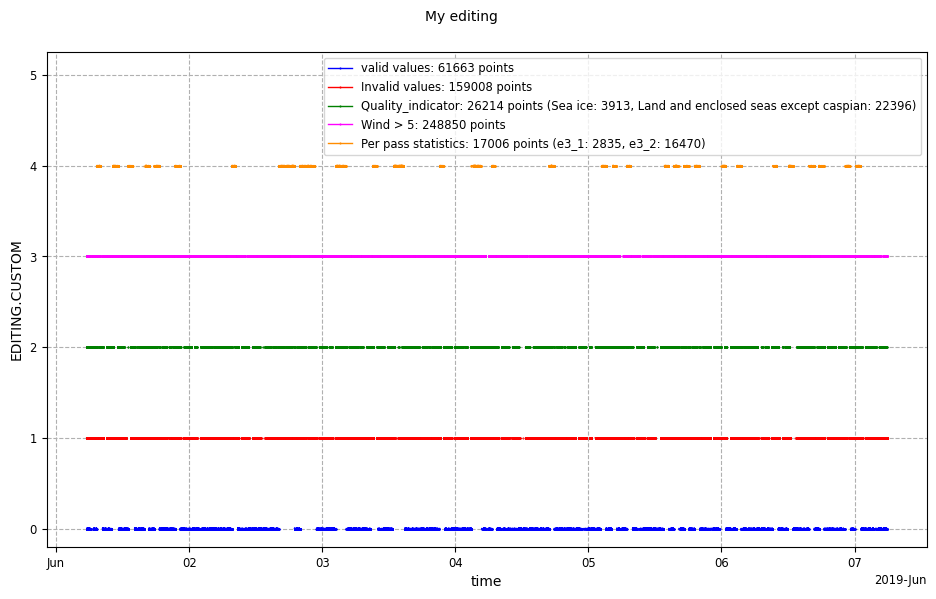

cp = CasysPlot(data=ad, data_name="My editing", plot="editing", group="all")

cp.show()

Merging editing with raw data

cp = CasysPlot(
    data=ad,
    data_name="My editing",
    plot="editing",
    plot_params=PlotParams(
        x_limits=(
            DateHandler("2019/06/02T07:00:00"),
            DateHandler("2019/06/02T08:30:00"),
        ),
        y_limits=(-0.5, 8),
    ),
)

cp2 = CasysPlot(
    data=ad,
    data_name="Wind speed",
    plot_params=PlotParams(y_limits=(-6.4, 21.18)),
    data_params=DataParams(remove_nan=True),
)

cp.add_plot(cp2, shared_ax="x")
cp.show()
