Ssalto/Duacs multimission altimeter products

Duacs is the Ssalto multimission altimeter data processing system. It serves in near-real time the main operational oceanography and climate forecasting centers in Europe and worldwide.

SSALTO/DUACS experimental products: new release (June 2018)

For 20 years, the DUACS system has been producing, as part of the CNES/SALP project, and the Copernicus Marine Environment and Monitoring Service (CMEMS), high quality multimission altimetry Sea Level products for oceanographic applications, climate forecasting centers, geophysics and biology communities... While the operational production of the Sea Level along track and maps is now generated as part as CMEMS, the development of a new experimental SSALTO/DUACS products started mid 2016 at CNES aiming at improving the resolution of the current products and designing new products. Using the global Synthetic Aperture Radar mode (SAR Mode) coverage of Sentinel3A/B and optimizing the LRM (Low Resolution Mode) altimeter processing (retracking, editing, ...) will notably allow us to fully exploit the fine-scale content of the altimetric missions. Thanks to this increase of real time altimetry observations we will also be able to improve Level-4 products by combining these new Level-3 products and new mapping methodology, such as dynamic interpolation. Finally, these improvements will benefit to downstream products: geostrophic currents, Lagrangian products, eddy atlas…
An illustration of the improvement of this new product is given in the opposite figure: comparison of mean Eddy Kinetic Energy (EKE) over the period [12/04/2014-31/12/2015] for DUACS products: operational (top), new experimental computed with Dynamic Interpolation (middle) and the difference between the two (bottom) where red color indicates areas of higher energy. Credits CNES/CLS. Click to enlarge. Animation of EKE available on the gallery. Explanation about EKE can be found here

Oil spill in the China Sea resulting from the Sanchi tanker disaster (January 2018) superimposed with the FSLE products (unit days-1) for the same period.

The new release includes the following products:

  Altimetric mission Detailed information/
Condition of use
Area Period Short description Improvement compared to operational version
Level3
Along-track
 Jason-3 product page and
handbook

/


standard licence permission (see the licence agreement)
North Atlantic and Agulhas  1 year
(2016/03/28-2017/04/02)
5Hz along track product SLA, ADT, geostrophic velocities on the across-track direction and specific geophysical correction for modelers. The computing of the Sea Surface height benefits from optimized processing such as
-the operational MLE4 Retracking improved by an empirical noise reduction correction (Zaron, 2016),
-an improved method for the selection of measurements
-an optimized filtering
-5Hz input data instead of 1Hz
-More variables for modelers, including velocities on the across-track direction
-Example of use in Benkiran et al., 2018, 'Impact of the assimilation of high-resolution and high-frequency data in a regional model' (CAW11)

OSTM/Jason-2 1.5 year
2014/12/29-2016/03/06)
Saral/AltiKa 2 years
(2014/12/29-2017/02/05)
Cryosat-2 1 year
(2015/01/01-2016/01/03)
Sentinel-3A 1 year
(2016/04/06-2017/04/23)
Level4 Gridded Merged Altimetry with Dynamic Interpolation Gulf Stream


Circumpolar (udintsev)
1 year
(2014/04/12-2015/12/31)
6 months
(2015/11/01-2016/04/30)
Maps of SLA, ADT, and geostrophic velocities computed at 1/4° (1/8° for Circumpolar) resolution using Dynamic Interpolation (Ubelmann 2015) -Better representation of the turbulent regions
-Comparison to Chlorophyll, SST, independent along-track data has been done
(Ubelmann et al.,2017)
-Example of EKE difference in the figure above and on the gallery
Merged combining  Altimetry and Drifters Gulf of Mexico 8 months
(2015/09/01-2019/04/30)
Maps of SLA and geostrophic velocities computed at 1/4° resolution using a multivariate technique merging SSH+Drifter (Mulet et al., 2017) -Significant improvement on the meridional component
-Relevant statistical results
(Mulet et al., 2017)
Merged combining  Altimetry and SST Global 1 year (2015) Maps of eulerian currents velocities computed at 1/4° resolution using a multivariate technique merging SSH+SST (Rio et al., 2016) -Major improvement in the equatorial area compared to altimetry alone classical maps
-Improvement in both large scales and smaller scales
(Rio et al., 2016)

Finite Size Lyapunov Exponent (FSLE) product page and
handbook
/
restricted licence permission (see the licence agreement)
Global NRT with latency of 20 days Maps computed at 1/25° resolution of backward in time Finite Size Lyapunov Exponent and orientations (d'Ovidio et al., 2004)

ACCESS TO PRODUCT:

Users should keep in mind that these products are experimental products. Notably, they are not produced on an operational basis.
On the AVISO+ website, the products are identified as follows:

  • "Ssalto/Duacs Experimental products: along-track and gridded Sea Level Heights and velocities” for the level 3 along-track 5 Hz products and the level 4 merged products computed with Dynamic Interpolation and combing altimetry/drifters and altimetry/SST
  • Lyapunov Exponents and Orientations products” for the level-4 gridded FSLE (for delayed time as well as for routine production called near-real-time)

If you are not registered, please, fill the form on the registration page and select the products detailed above.
If you are already registered on AVISO+, you can access to the products on ftp in your own AVISO+ dedicated space.

  • If you don't remember your password, please reset it here
  • If this product doesn't appear in "your current subscriptions", you don't need to fill the form entirely: please select it in the "other products you may want to access" and sign the licence. We will register you as soon as possible (depending on the conditions of use).

FEEDBACKS:

The Service Desk (aviso(at)altimetry.fr) is highly interested in user feedbacks: questions, comments, proposals, requests are much welcome to help us improving the quality of the products disseminated to users.

SSALTO/DUACS Operational products

Ssalto/Duacs system processes data from all altimeter missions (Jason-3, Sentinel-3A, Saral, Cryosat-2, Jason-1&2, T/P, Envisat, GFO, ERS-1 & 2 and even Geosat) to provide a consistent and homogeneous catalogue of products for varied applications, both for near real time applications and offline studies. They are disseminated by the Marince Copernicus Services (CMEMS)

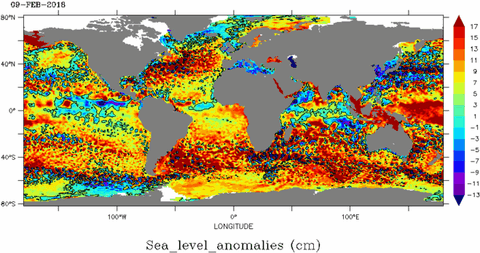

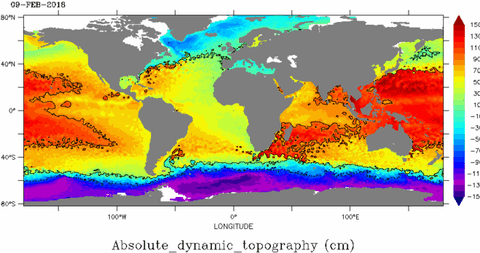

Latest Duacs maps (Sea Level Anomalies, top, Absolute Dynamic Topography, bottom). Browse through more of them through our "Sea views" interface. Credits CLS/Cnes.
