Ratio diagnostics

Ratio diagnostics are added using the add_ratio() method.

It allows to compute a ratio between the COUNT statistics of two previously added diagnostics. These diagnostics must be of the same type and include the COUNT statistic.

Add the computation of a ratio between two diagnostics. These two
diagnostic must include the computation of the COUNT statistic.

Parameters
----------
name
    Name of the ratio statistic.
stat_numerator
    Name of statistic to compute the ratio of, in comparison to another
    statistic.
stat_denominator
    Name of the reference statistic.
total
    Whether the denominator statistic is the total on which to compute the
    ratio or the complementary part.

This kind of diagnostic is plotted the same way its diagnostic parameters are.

Diagnostic setting

In the following example we are setting a ratio diagnostic computing to ratio between two along time diagnostics:

• Rejected data per pass

• Total number of points per pass

from casys import Field

edited = Field(name="edited", source="IIF(FLAG_VAL.ALTI :!= 0,1, DV)", unit="count")
flag_val = ad.fields["FLAG_VAL.ALTI"]

ad.add_time_stat(
    name="Rejected data, mean by pass", freq="pass", field=edited, stats=["count"]
)

ad.add_time_stat(
    name="Number of points, mean by pass",
    freq="pass",
    field=flag_val,
    stats=["count"],
)

ad.add_ratio(
    name="Percentage of rejected data",
    stat_numerator="Rejected data, mean by pass",
    stat_denominator="Number of points, mean by pass",
    total=True,
)

ad.compute()

Diagnostic plotting

Ratio statistics are plotted the same way the diagnostics they are related to are.

from casys import CasysPlot

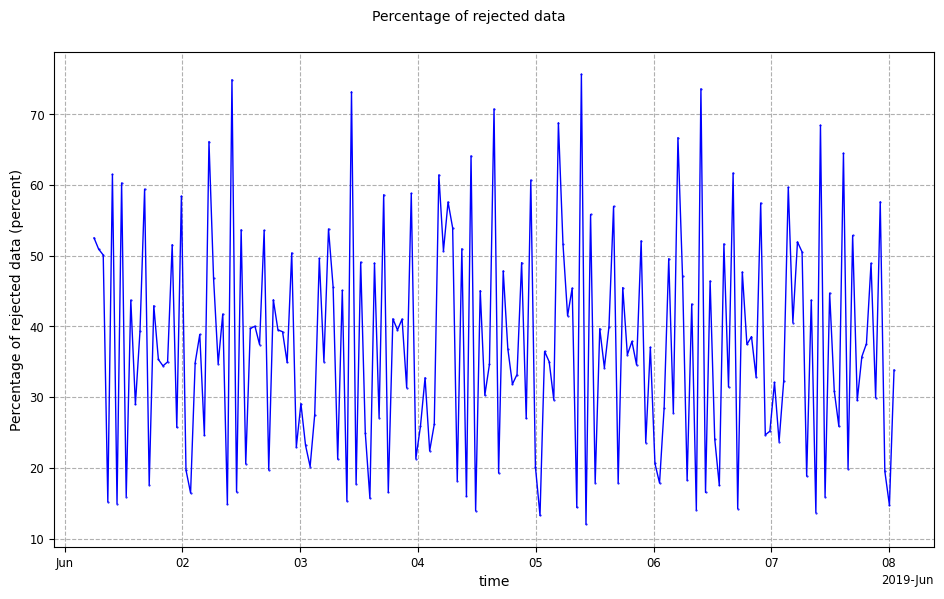

plot = CasysPlot(data=ad, data_name="Percentage of rejected data")

plot.show()
