Atlantic Ocean

Combining the close-up view with the big picture

Since the middle of the 19th century, the North Atlantic Oscillation has been measured from land and, increasingly, at sea. In recent years, satellites have made it possible to monitor this phenomenon continuously and systematically.

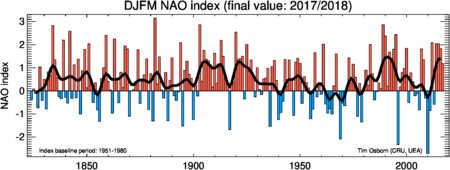

Positive (red) and negative (blue) phases of NAO over the last 150 years. Credits Climatic Research Unit, University of East Anglia, updated from Osborn (2011).

NAO as seen by altimeters

Wave heights in winter (in meters per NAO index unit) are very sensitive to pressure variations over the North Atlantic. West of Ireland, for example, waves are significantly higher when the NAO index is positive. (Credits National Oceanography Centre, Southampton, NOCS).

The fluctuations of the North Atlantic Oscillation and the temperature variations that go with it lead to changes in sea level. The ocean reacts to shifts in the prevailing winds, which drive the currents, waves, sea surface temperature... Temperature swings also cause sea surface height to vary. We can observe these variations using altimetry satellites such as Topex/Poseidon and Jason-1. All these measures can thus serve as indicators for NAO phases and be used in climate prediction models.

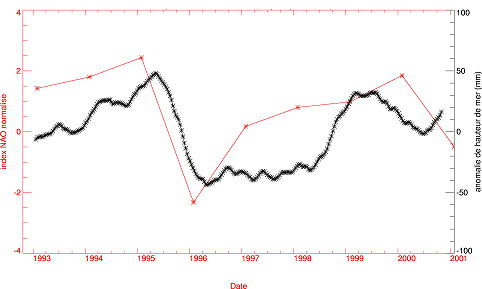

Sea level variation over the North Atlantic (seasonal and turbulent variation removed) computed from Topex/Poseidon. NAO index variation is also reported. (Credits Cnes).

Other satellites observe sea surface temperature and wind speed, from which we can derive information about heat exchanged between the ocean and atmosphere. By combining these data acquired over relatively long periods with in-situ measurements deeper down, we are beginning to understand what role the ocean plays in the NAO.

1995 - 1996, a sharp variation

Between the winters of 1995 and 1996, sea level rose around Iceland and fell further south. The NAO index for the same period also varied sharply. This swing causes the westerly winds around Iceland to weaken, which in turn leads to rising temperatures in the upper layers of the ocean. In-situ measurements suggest that such temperature fluctuations could be largely responsible for variations in sea level.

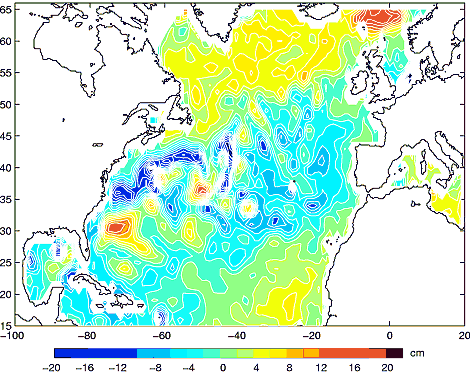

Sea surface height variation between the winters of 1996 and 1995. (Crédits Legos).
Variation in sea surface temperature between the winters of 1996 and 1995.
